Product name:xps/eps underfloor heating board water heating insulation systems

1)In underfloor water heating insulation systems, grooved EPS/XPS panels are used to achieve the effect of thermal insulation, fireproof, soundproof, waterproof.
2)There are two types of underfloor heating system, one is laminated with foil and one is with Aluminum plate.
3)The hot water pipes can be installed into the grooves, when hot water flows, the heat could be spreaded efficiently and evenly, at last the heat can be conducted to the floor surface.
Two types of underfloor heating water heating insulation systems panel/board

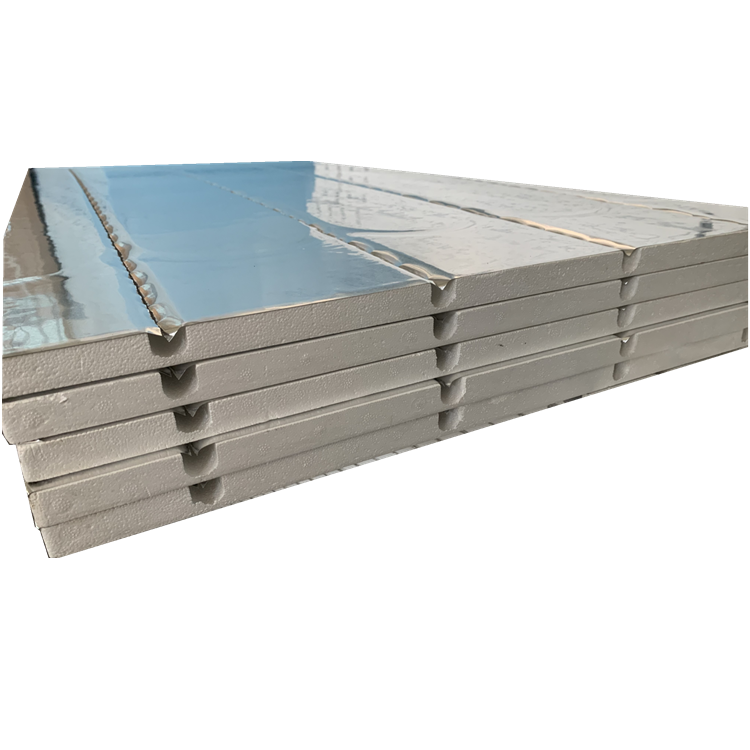

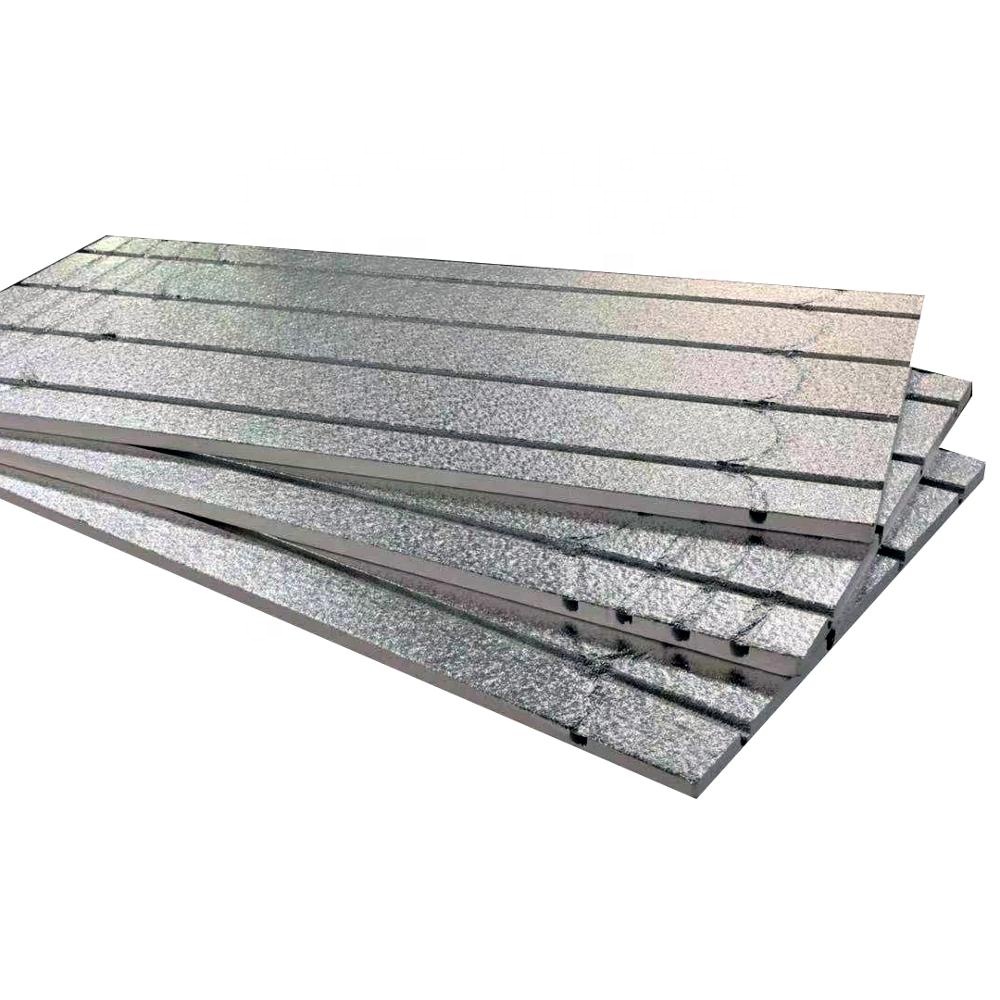

1. Grooved XPS laminated with aluminum foil-----------------it's better for tile finished floor

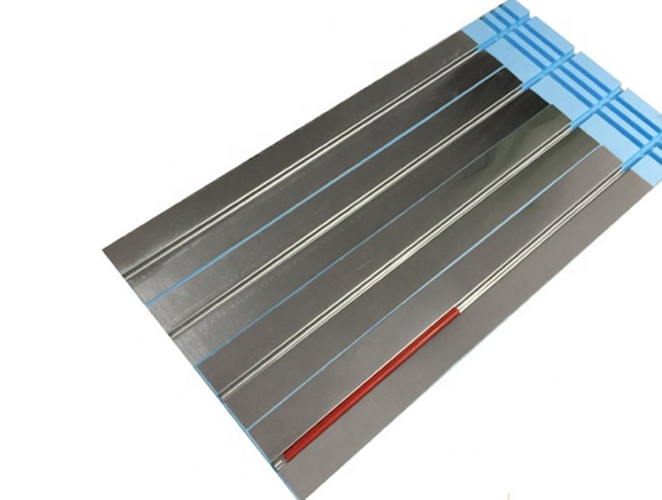

2. Grooved XPS + aluminum sheet ----------------------------it's better for wood finished floor
3. OEM or ODM is also acceptable, we can produce based on your requirement

Advantage of underfloor heating underfloor water heating insulation systems

1.Water Manifold With 16 Pipe for underfloor Heating and XPS Insulation 25mm Foam Board, free of CFC,HCFC .
2. Ʊ-shape groove-easy to installation. For example, two people can finish 1000m2 in two hours
3. high compressive strength of underfloor heating board 250~400kpa(1m2 area can bear 25~30 ton weight)

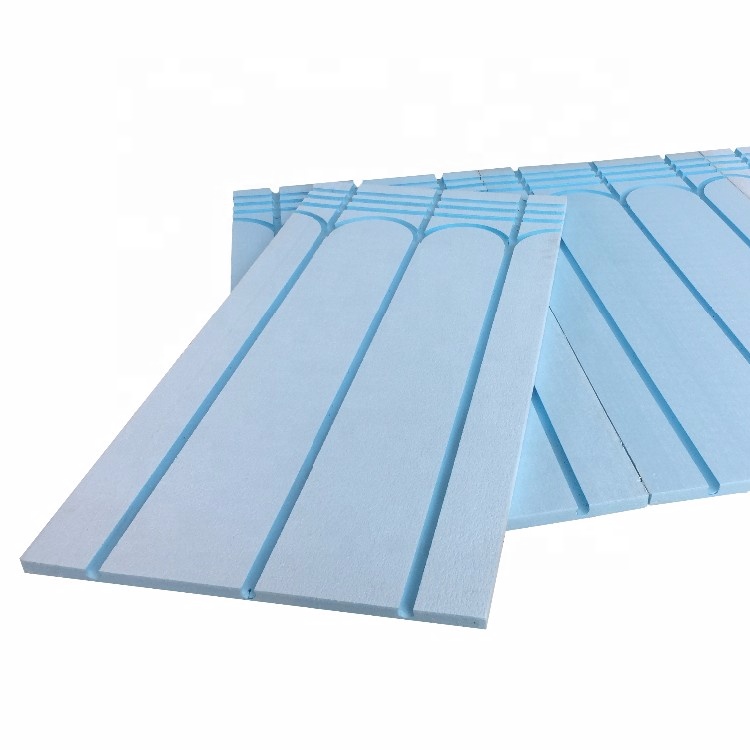

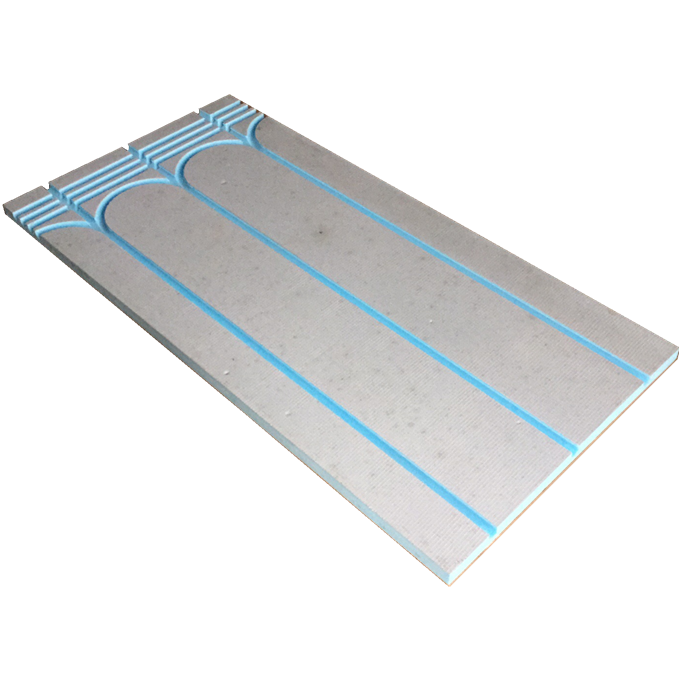

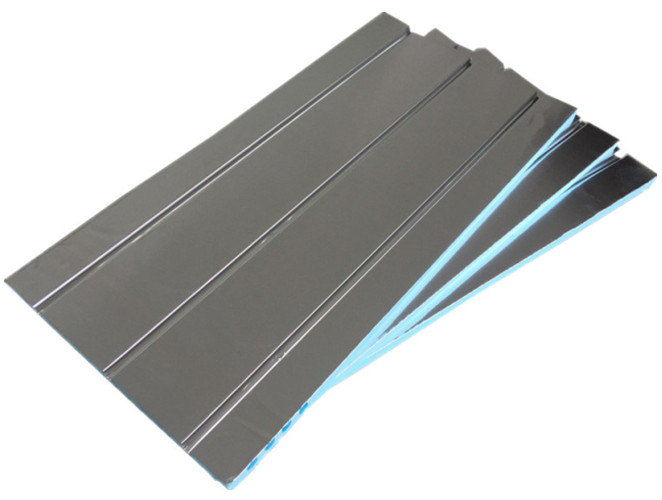

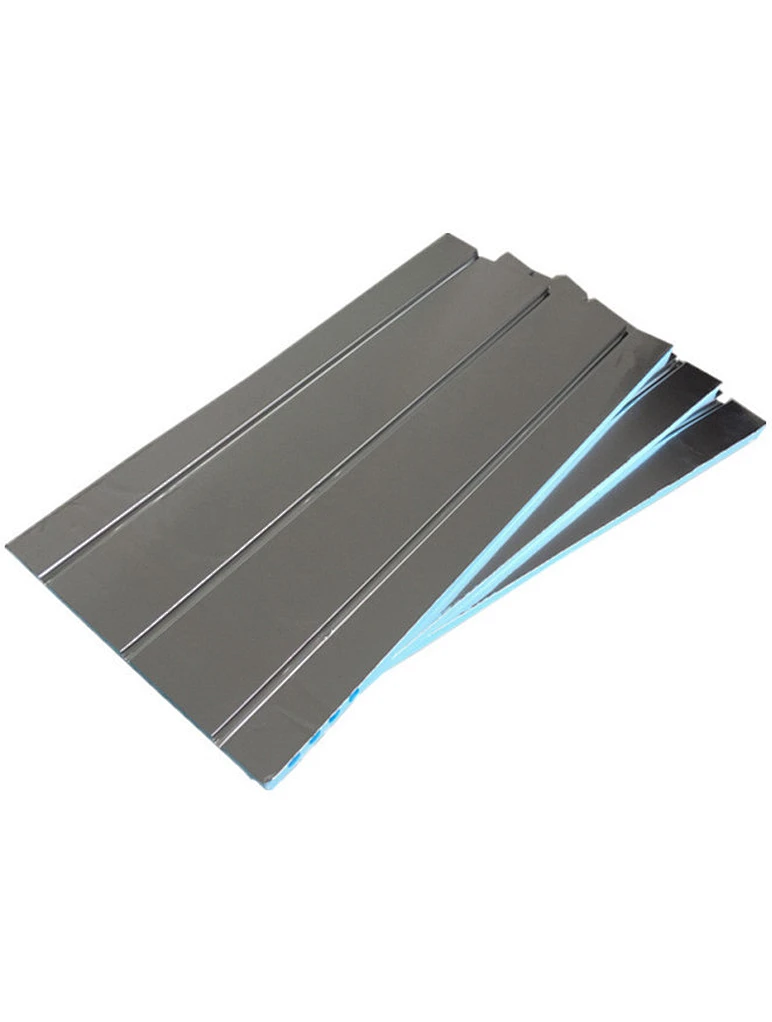

XPS underfloor heating board with al sheet      XPS underfloor heating board with al foil                                XPS underfloor heating​​​​​​​ board
