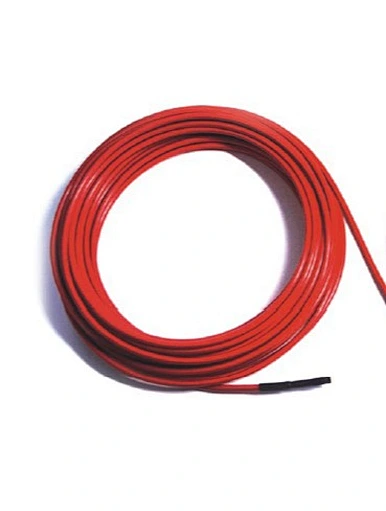

Electric underfloor heating cable and mat
Heating mat
Quantity
TYCO electric underfloor heating system heating mat and heating cable
| From: | TYCO INDUSTRIAL CO., LTD | electric underfloor heating cableConstruction | electric underfloor heating systemTwin conductor | |||
| Contacts: | Pesca | electric underfloor heating cable Operating Voltage | 230V | |||
| Title: | Trade manager | electric underfloor heating cable Power output | 12W/M,16W/M,18W/M,20W/M | |||
| Tel: | 86 13516820701 | electric underfloor heating cable Cable diameter | 3.6mm | |||
| Fax: | electric underfloor heating cable Min.bending radius | 25mm | ||||
| E-mail: | pesca@hztyco.com | electric underfloor heating cable Conductor insulation | Japan Fluoropolymer | |||
| Skype: | electric underfloor heating cable Outer insulation | PVC | ||||
| Website: | www.hztyco.com | electric underfloor heating cable Max.continuous exposure | 30℃ | |||
| Address: | China, Zhejiang | electric underfloor heating cable Min.installation temperature | 5℃ | |||
| OEM available | Cold lead | 2.5m length | ||||
| electric underfloor heating systemModel No. | electric underfloor heating system Length (m) | electric underfloor heating system Output (W) | electric underfloor heating system Rated Voltage (V) | electric underfloor heating systemMOQ (pcs) |
| FHCT20 | 9.4 | 200 | 230 | 20 |
| FHCT20 | 14.3 | 300 | 230 | 20 |
| FHCT20 | 18.8 | 400 | 230 | 20 |
| FHCT20 | 23.7 | 500 | 230 | 20 |
| FHCT20 | 28.2 | 600 | 230 | 20 |
| FHCT20 | 33.0 | 700 | 230 | 20 |
| FHCT20 | 38.5 | 800 | 230 | 20 |
| FHCT20 | 44.5 | 900 | 230 | 20 |
| FHCT20 | 50.7 | 1000 | 230 | 20 |
| FHCT20 | 56.5 | 1200 | 230 | 20 |
| FHCT20 | 66.0 | 1400 | 230 | 20 |
| FHCT20 | 76.5 | 1600 | 230 | 20 |
| FHCT20 | 89.0 | 1800 | 230 | 20 |
| FHCT20 | 101.0 | 2000 | 230 | 20 |
| FHCT20 | 117.0 | 2300 | 230 | 20 |
| FHCT20 | 133.0 | 2700 | 230 | 20 |
| Packing: | Carton (without inner box and spool) | |||
| Delivery time: | 30 days after receiving payment | |||
| Payment: | 100% T/T in advance or irrevocable L/C at sight issued by first grade international bank | |||
| Sample: | Can be sent free after the confirmation of prices and other conditions. Charges will be collect at buyer's cost. | |||
