Product name:China Manufacture Overlay Under floor Heating Insulation Hydronic water Floor Heating Module

1)In water under floor heating panel insulation systems, grooved EPS/XPS panels are used to achieve the effect of thermal insulation, fireproof, soundproof, waterproof.
2)There are two types of underfloor heating panel, one is laminated with aluminum foil and one is with Aluminum plate.
3)The hot water pipes can be installed into the grooves, when hot water flows, the heat could be spreaded efficiently and evenly, at last the heat can be conducted to the floor surface.
Two types of EPS/XPS water underfloor heating panel

1. Grooved EPS/XPS laminated with aluminum foil-----------------it's better for tile finished floor
2. Grooved EPS/XPS + aluminum sheet ----------------------------it's better for wood finished floor
3. OEM or ODM is also acceptable, we can produce based on your requirement.

Advantage of EPS/XPS underfloor heating panel

1.Water Manifold With 16 Pipe for underfloor Heating and EPS/XPS Insulation 25mm Foam Board, free of CFC,HCFC .
2. Ʊ-shape groove-easy to installation. For example, two people can finish 1000m2 in two hours
3. high compressive strength of underfloor heating board 250~400kpa(1m2 area can bear 25~30 ton weight)

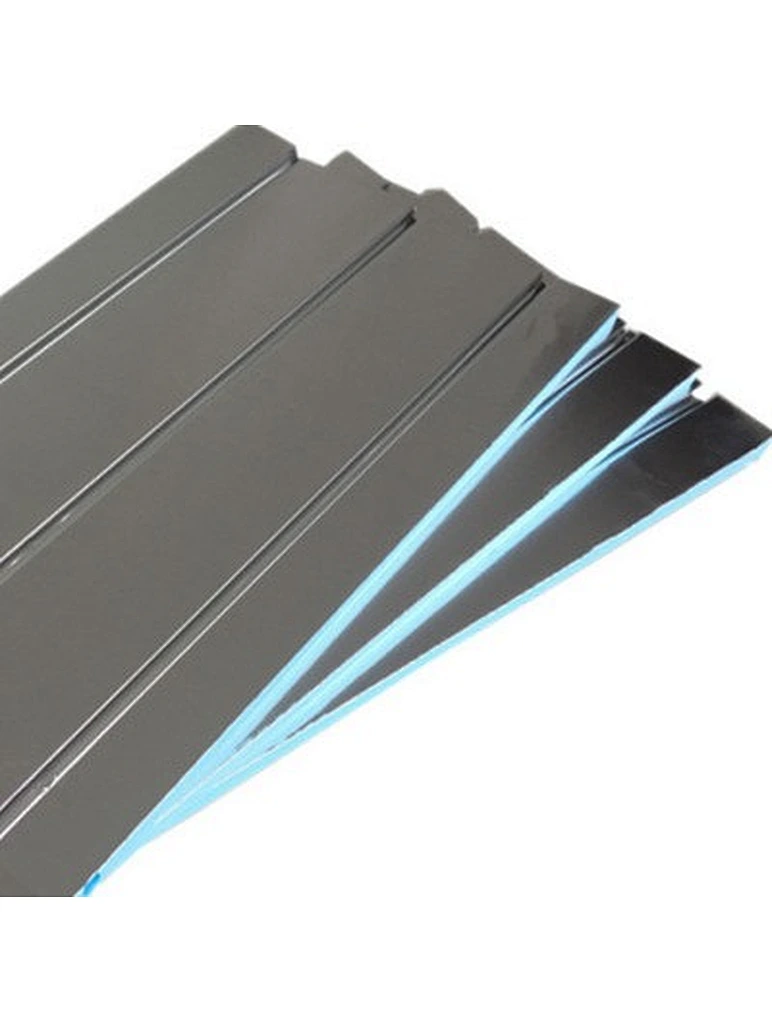

1.XPS underfloor heating panel with al sheet      2.XPS underfloor heating panel with aluminum foil                             3.XPS underfloor heating board
